Welcome to UNIPUMPS
MANUFACTURERS AND WHOLESALERS OF HIGH-QUALITY SWIMMING POOL PUMPS, FILTERS, AND POOL PRODUCTS TAILOR-MADE FOR EVERY WATER EXPERIENCE.
PUMPS

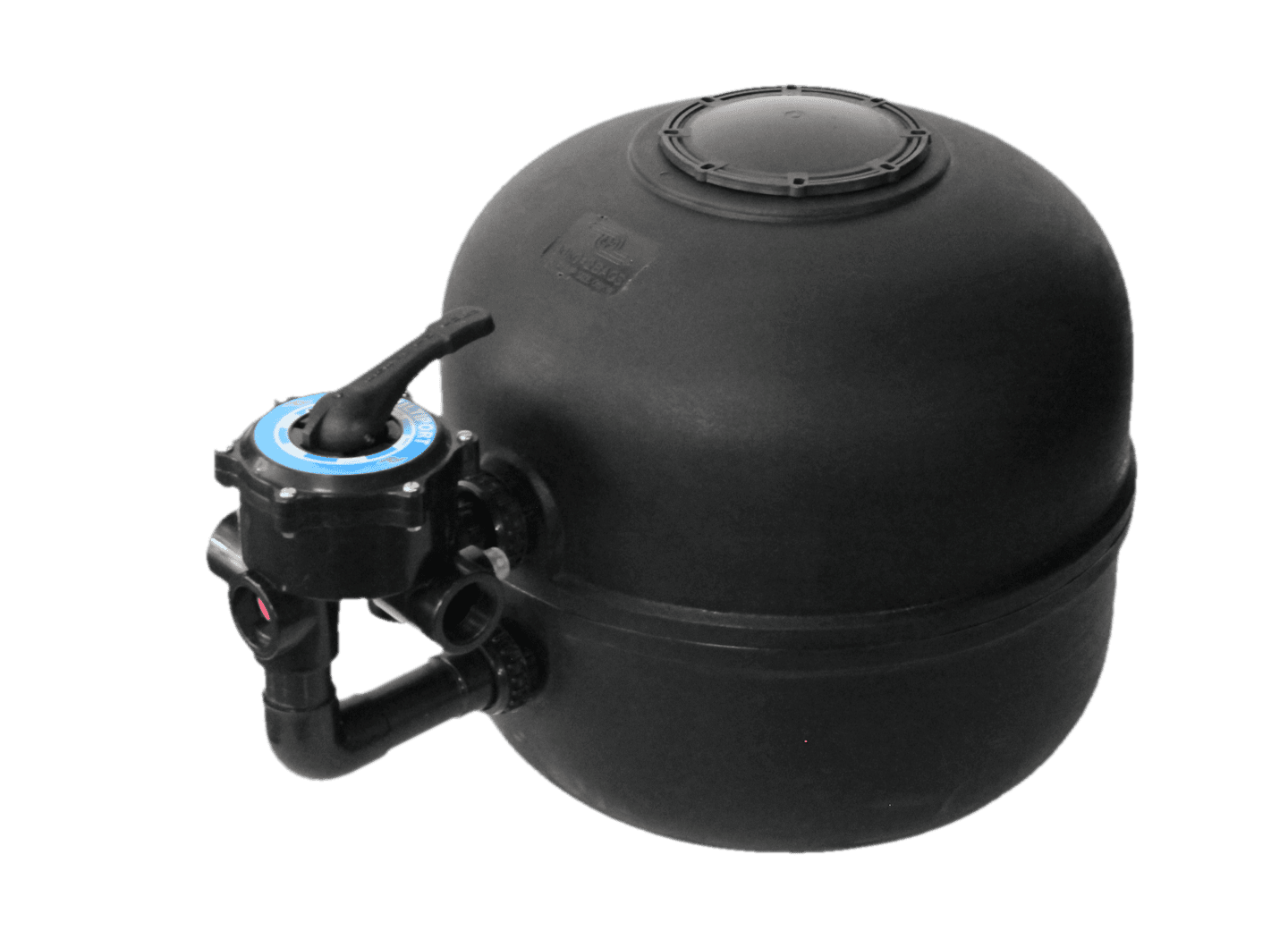

UNI Filter
The Uni Filter was designed with durability in mind, therefore we opted to go for a fiberglass construction instead of roto moulded plastic, this gave us a completely new design option, as well as the option of vibrant colours.
Our filters get vacuum-formed to ensure a watertight seal on the shell after which the two halves are joined. Our filters are finished and fully tested under normal operating conditions before they get polished.
The Uni filter comes with a 60-month onsite warranty under normal operating conditions for the shell within the Gauteng area. It also offers a built-in automatic pressure relief system. All internal components are manufactured from ABS plastic and were made with ease of use in mind.
| Size | Max Flow Rate per Hour | Pool size in m³ |
| Uni Filter Pool 1 Bag – 0.4kW | 6m3/h | 15 000 – 35 000 |
| Uni Filter Pool 2 Bag – 0.6kW | 10m3/h | 30 000 – 55 000 |
| Uni Filter Pool 3 Bag – 0.75kW | 13m3/h | 50 000 – 85 000 |
| Uni Filter Pool 4 Bag – 1.1kW | 17m3/h | 80 000 – 100 000 |
| Type | Weight (kg) | Size |
| UNI Filter 1 | 7.5kg | 450mm x 400mm |
| UNI Filter 2 | 8.0kg | 550mm x 400mm |
| UNI Filter 3 | 9.5kg | 550 mm x 550mm |
| UNI Filter 4 | 10.5kg | 650mm x 600mm |

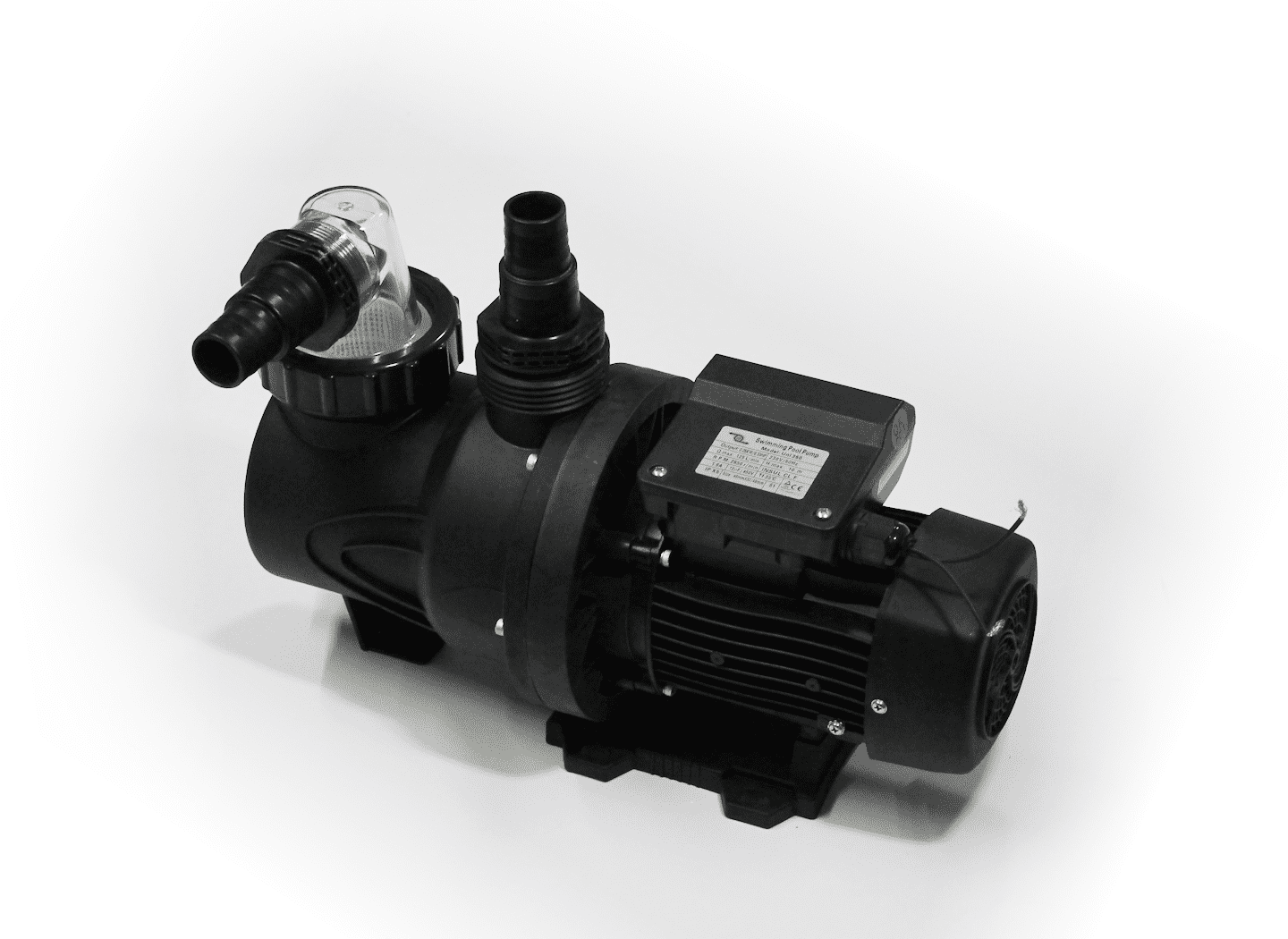

The UNIpumps range offers the following:
- Pumps with stainless-steel shafts
- Plastic components that are 100% recyclable
- Fully factory tested
- Easy ramp and clamp lid access
- Max operating temperature of 60°C
- Pump operating capacity of 2 meters above and below the water surface
- Pumps are available in 5 different sizes to accommodate all pool sizes (0.25kW, 0.4kW, 0.6kW, 0.75kW, 1.1kW)
- 24-month on-site warranty in Gauteng
- Self-priming
- Spare parts available locally
Swimming pool pumps are the heart of your pool or pond, and it circulates your water through the filter to keep your water clean and sparkling.
Pumps spares include:
Pump Basket | Pump Lid | Mechanical Seal | Bearings | O-rings | Capacitors

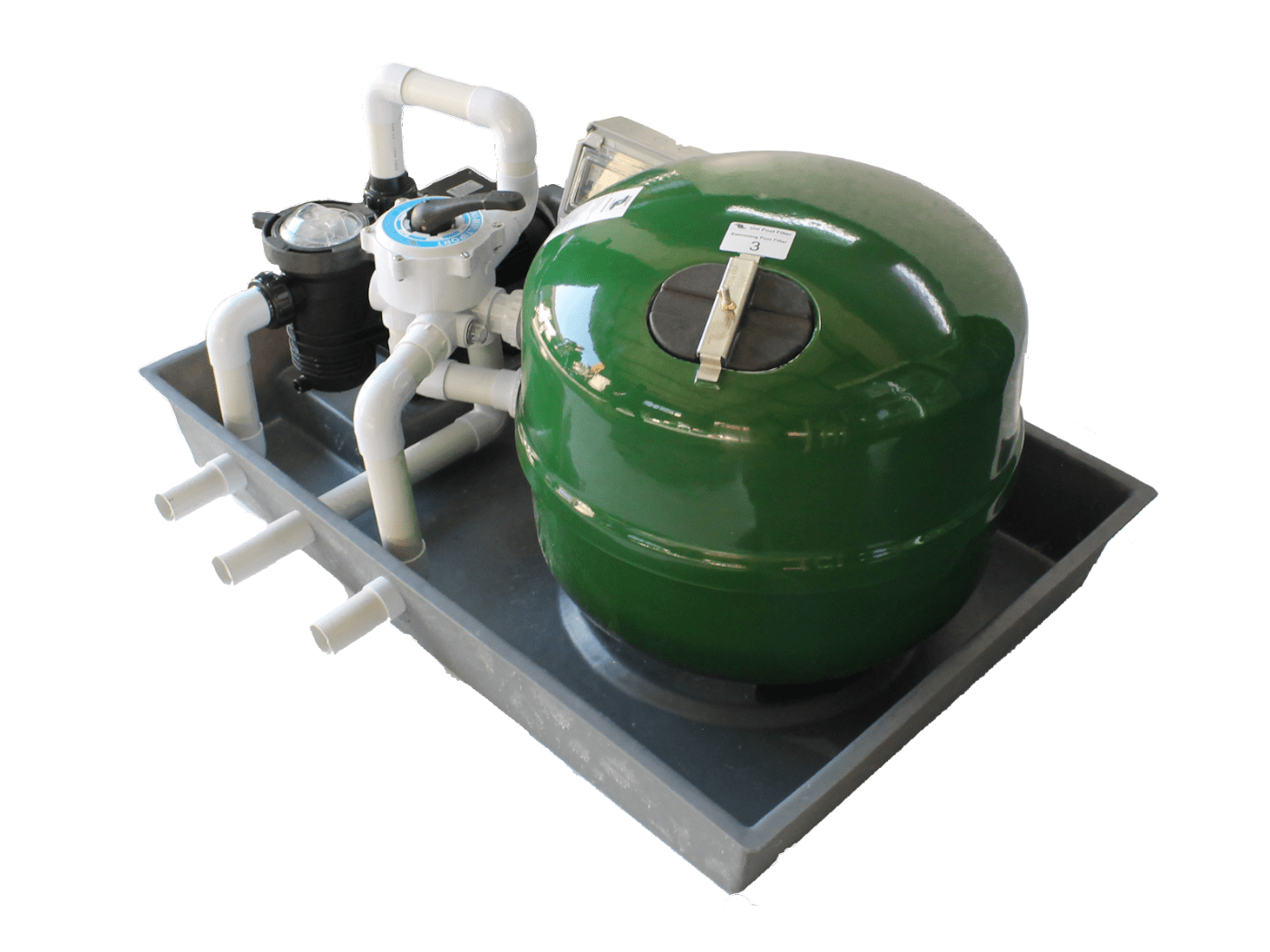

UNIPOOLS & UNIKOI FILTERS
Fiberglass vacuum processed shell
Non-corrosive ABS internal components
Automatic internal pressure relief
60 month on-site warranty in the Gauteng area
Easy to remove filter lid
Complete with ease of operation 5-way multiport valve
Our high-rate Fiberglass Filters are durable and easy to operate with a side-mounted multiport valve with easy-to-select operation features. Our filters are pressure tested in the factory and have a one-bolt filter lid for easy access. The internal components are made from durable ABS plastic to give you peace of mind.
UNI Filter
The Uni Filter was designed with durability in mind, therefore we opted to go for a fiberglass construction instead of roto moulded plastic, this gave us a completely new design option, as well as the option of vibrant colours.
Our filters get vacuum-formed to ensure a watertight seal on the shell after which the two halves are joined. Our filters are finished and fully tested under normal operating conditions before they get polished.
The Uni filter comes with a 60-month onsite warranty under normal operating conditions for the shell within the Gauteng area. It also offers a built-in automatic pressure relief system. All internal components are manufactured from ABS plastic and were made with ease of use in mind.
| Size | Max Flow Rate per Hour | Pool size in m³ |
| Uni Filter Pool 1 Bag – 0.4kW | 6m3/h | 15 000 – 35 000 |
| Uni Filter Pool 2 Bag – 0.6kW | 10m3/h | 30 000 – 55 000 |
| Uni Filter Pool 3 Bag – 0.75kW | 13m3/h | 50 000 – 85 000 |
| Uni Filter Pool 4 Bag – 1.1kW | 17m3/h | 80 000 – 100 000 |
| Type | Weight (kg) | Size |
| UNI Filter 1 | 7.5kg | 450mm x 400mm |
| UNI Filter 2 | 8.0kg | 550mm x 400mm |
| UNI Filter 3 | 9.5kg | 550 mm x 550mm |
| UNI Filter 4 | 10.5kg | 650mm x 600mm |
DB BOXES
UNI DB-Box offers :
- Manufactured from flame retardant virgin ABS plastic
- Full range of spare parts available
- Available in various specifications
- Fully integrated weatherproof DB-Box
- Each DB-Box can be built to specifications
- IPX certification
UNI DB-Boxes are weatherproof and flame retardant. Our UNI DB-Box is manufactured in our factory from a flame retardant virgin plastic making our UNI DB-Box durable and safe to use inside your pump rooms. The UNI DB-Box gets assembled in-house which gives you several options to choose from or have it built to your custom specification. All spare parts are readily available in stock. Our UNI DB-Box comes with a 12-mönth warranty on the box from the date of purchase.
UNI DB-Box Options
| Size | Timer SUL | 16amp | 20amp | 25amp |
| 6VA | X | X | X | OPT |
| 125VA | X | X | OPT | OPT |
| 300VA | X | X | OPT | OPT |
MPV SELECTOR INFORMATION
All swimming pools need to run through the filter on the filtration setting, to remove all the dust and particles from the water by filtering the water through a sand bed and returning it back to the pool.
The swimming pool filter needs to be backwashed once a week, simply select the backwash option and start the pump. This forces the water back through the filter sand cleaning all the dust and particles trapped in the sand.
Run it on this setting until the site glass passes clear water.
After the pool filter has been backwashed, it needs to be rinsed. Simply switch off the pump change it to rinse and switch on the pump and run it until the water is clear through the site glass. This must be done after every backwash.
This must only be used when you vacuum your pool after using a flocculant or when you want to get rid of excess dirt or water. Please keep in mind that on this setting the water level drops drastically as it is pumped directly into the waste line and could cause your pool water level to drop below the weir level and cause your pool pump to run dry
This must only be used when you vacuum your pool after using a flocculant or when you want to get rid of excess dirt or water. Please keep in mind that on this setting the water level drops drastically as it is pumped directly into the waste line and could cause your pool water level to drop below the weir level and cause your pool pump to run dry
Switch the filter to recirculate. This will bypass the filter, for when your filter has a leak or needs to be repaired. Keep in mind that no filtration will take place when in this setting.
Switching your filter to closed shuts off the water from running through the filter, this should only be used when cleaning out the pump basket or when working on the pump.
IMPORTANT
The UNI MPV must not be in the closed position when the pump is started and must not be switched into any position while the pump is running. Always switch the pump off before making your selection.
TRANSFORMERS

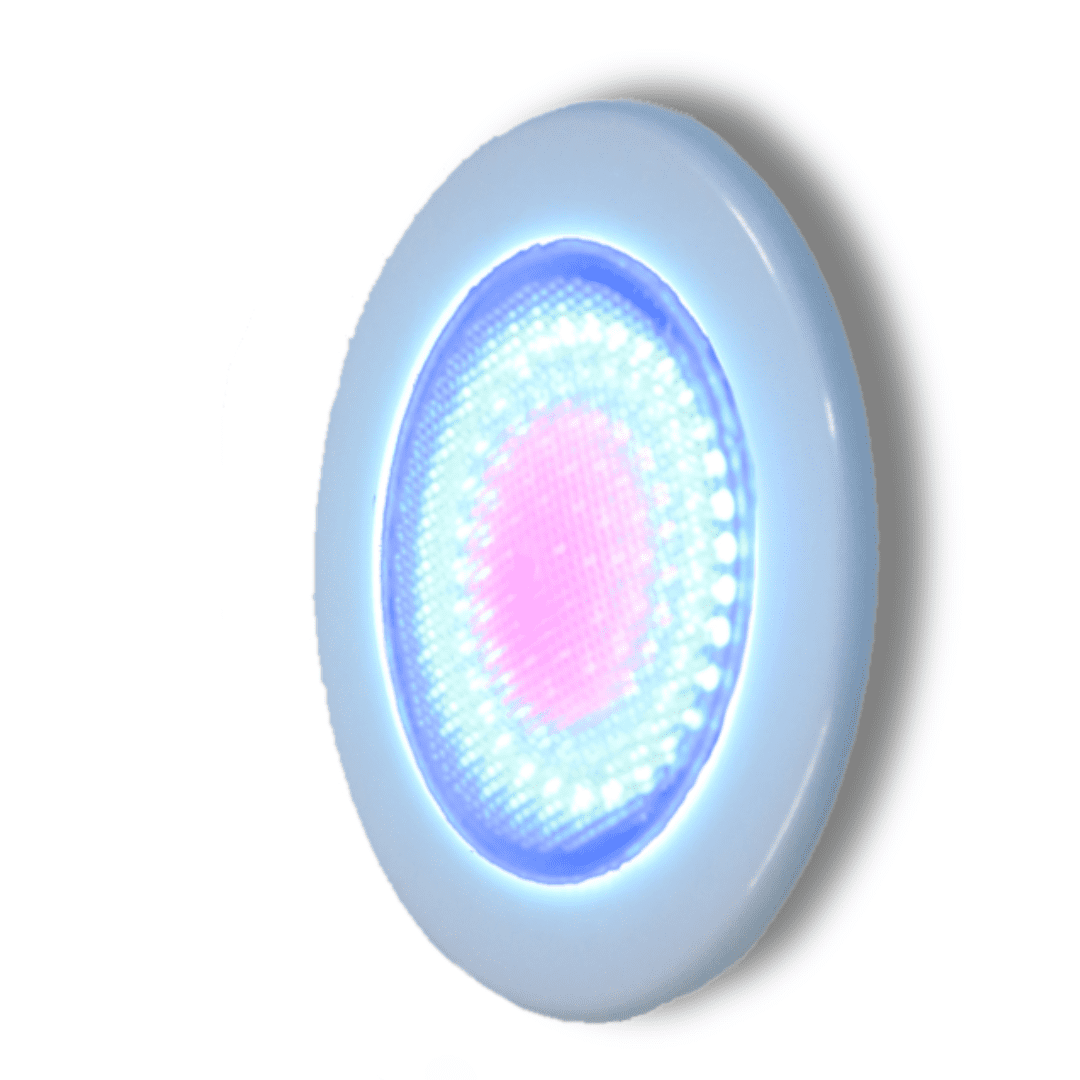

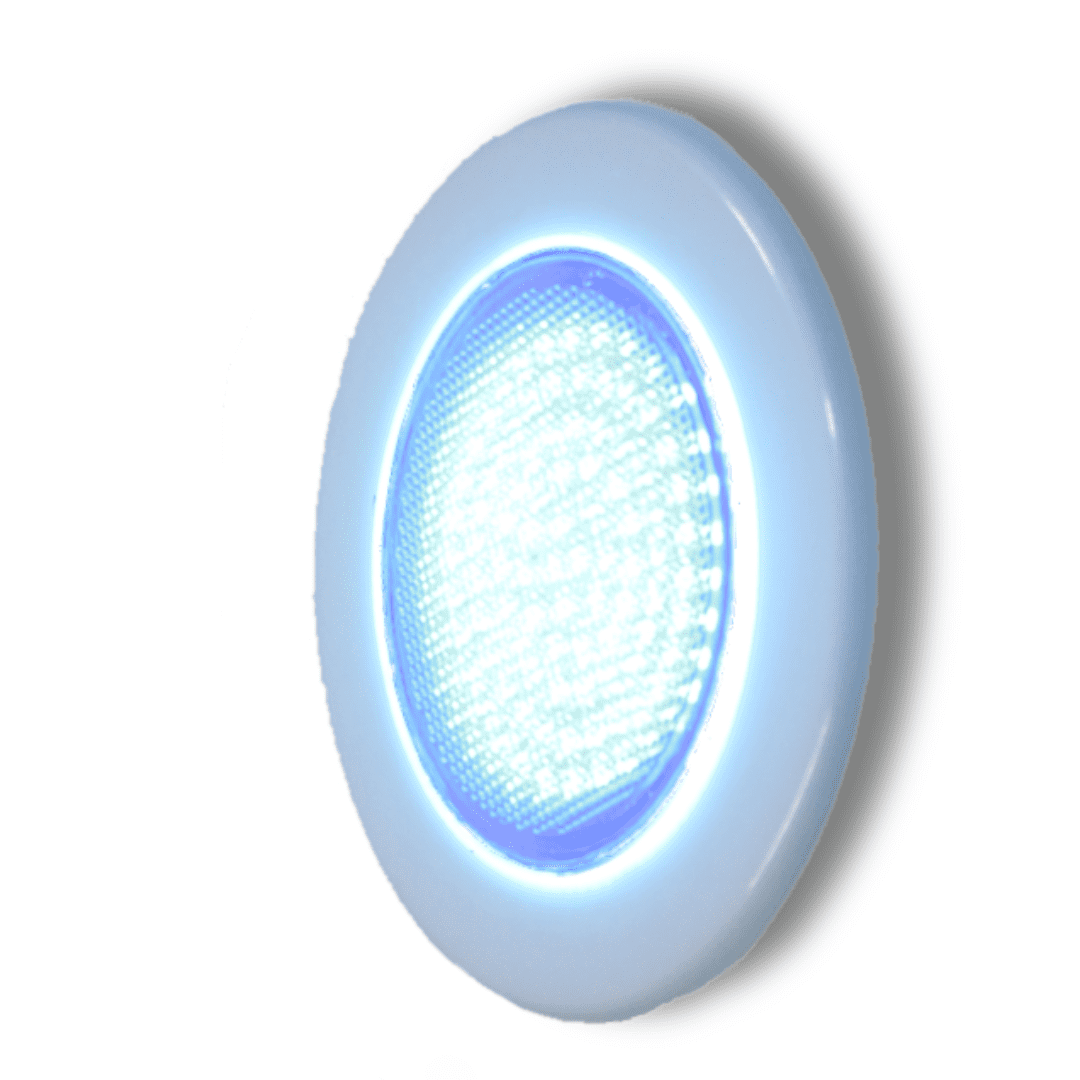

UNI Transformers are step-down transformers, they take the current voltage from 220v to 12v and are perfect for running a 12v LED pool light.
BREAKERS
Pictures with short description
TIMERS
Pictures with short description

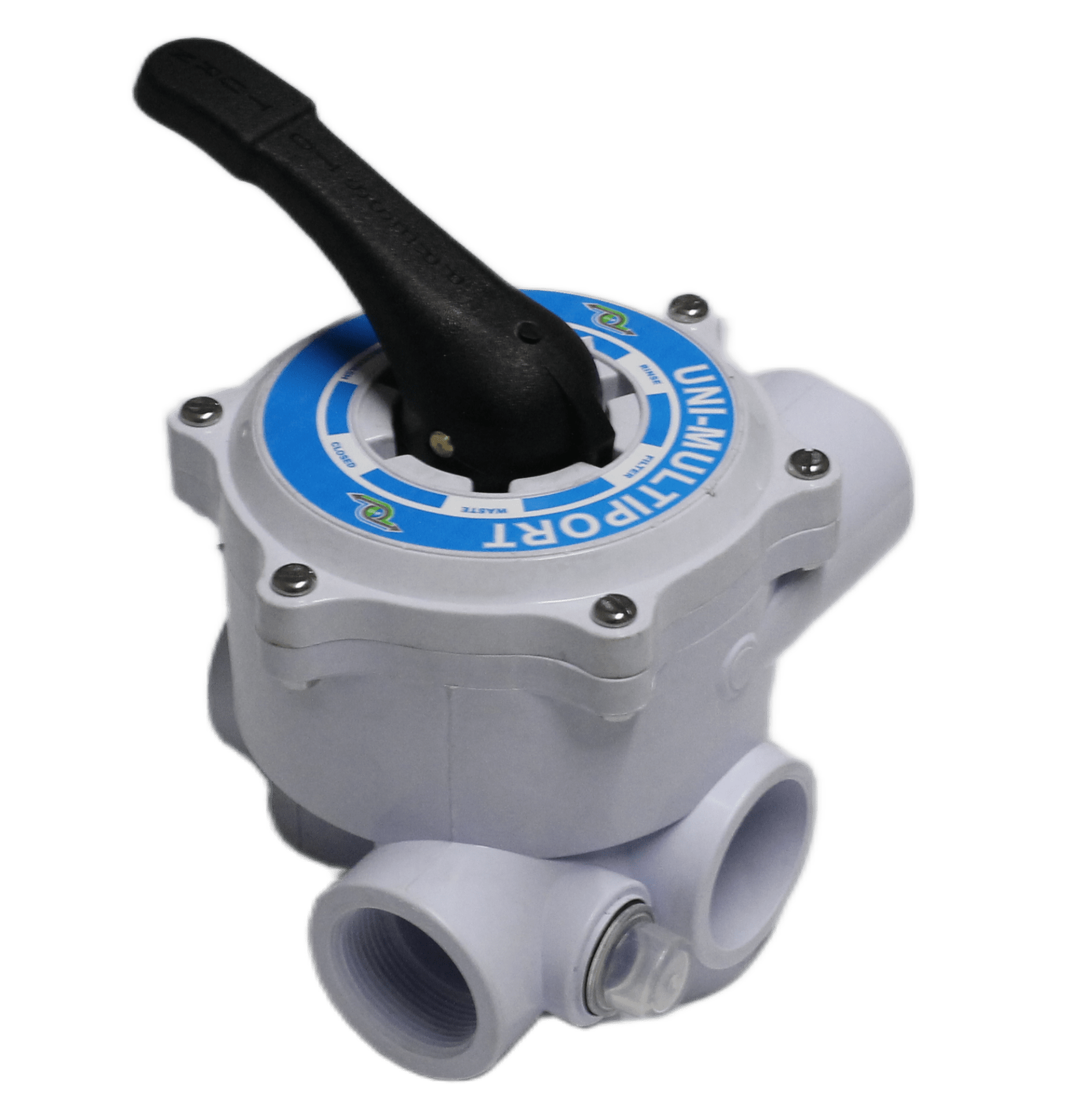

MPV
5-way easy selection head,
Clear rinsing site glass.
MPV top is universal and can fit onto a standard MPV body
